Compact

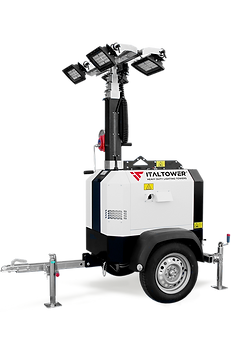

Smart EVO ST-L is equipped with a fixed pole with manual lifting. Its air-cooled 3000 rpm engine with oversized sump make it ideal for jobs with a limited budget but considerable performance.
Lumen
160,000 lm
Alternator
Linz SP10 4,2kVA
Autonomy
145 hours
Illuminated area
7000 smq
Acoustic emissions
70 dB @7m
Control unit
Deep Sea 3110
Engine
Yanmar L70V
Engine emissions
Stage V
Tank
80 L
LED Headlights
Four LED Headlights of 240W each for a total of 160,000 lumens. High-strength IP67-rated die-cast aluminium body with a service life of 85,000 hours
1
Manual mast
Galvanised pole with manual lifting system can reach a maximum extension of 5.5 m
2
Yanmar engine
Yanmar L70V engine with a consumption of 0.55 l/h, allowing an autonomy of 145 hours thanks to the 80 L tank.
3
Trailer
Slow-tow fixed trailer
4
Do you want more information?
Fill in the fields, We will get back to you as soon as possible!
Key features
Oil extraction pump
Oil extraction pump
The oil extraction pump facilitates and speeds up maintenance operations, allowing quick and clean oil changes. ITALTOWER's light towers are designed to minimise down-time.
Filters
Keep your light tower healthy with original filters
Italtower offers original filters for scheduled engine maintenance, ensuring full compatibility and constant performance over time.
Containment basin
Basin with drain valve
The basin is equipped with a 110% capacity containment basin; in the event of a leak, it can be emptied via a dedicated drain valve.
Trolley with forks
Reinforced forks for handling
The ST and RT versions feature rear or side forks, designed to facilitate tower handling on site and during trailer transport.
Manual winch for easy manual lifting
Manual winch
Hook for manual lifting of telescopic mast in three different maximum heights: 5.5m / 7m / 8.5m
Stage V engines
Emissions
The exhaust pipe, located on the roof of the tower, is designed to attenuate perceived noise at 7 m, improving the acoustic environment for operators
Eyelet
Certified lifting
Hook for central lifting of light tower, positioned close to manual or hydraulic mast
Reclining drawbar
The rudder is reversible to ensure maximum optimisation during parking and trailer operation.
Rotation
Manual mast rotation provides ample freedom in directing the lights in the desired direction
Mast fall arrest system
The locking pin prevents the mast from descending when the tower is in operation.
High capacity tank
The 150-litre high capacity tank ensures a high operational range, limiting the need for frequent refuelling and ensuring continuous and efficient tower operation.
Engine powered
Light towers
Gen-set powered lighting towers from Italtower, equipped with Kohler or Yanmar engines, offer high performance and low consumption. Resistant to extreme weather conditions and external agents, they are equipped with a control unit that protects engine and electronics. Designed and built in Italy, they guarantee reliability and long life.
Applications
Illuminated area
Lumen
Engine
Tank
Autonomy
Control unit
THIS PRODUCT
Smart EVO ST-L
4x240W LED | 5.5m
7000 sqm
Illuminated area
160.000 lm
Lumen
Yanmar L70V
Engine
80 l
Tank
145 h
Autonomy
DeepSea 3110
Control unit
12.000,00€
FAQ
How can I request a customised quote?
You can request a quote by filling in the form on our website, or by contacting the sales department directly by email or telephone. We will get back to you quickly with a tailor-made proposal.
What kind of support do you offer?
We provide technical support for installation, maintenance, repair and spare parts. We also assist customers with training and advice on the optimal use of light towers.
Do you provide after-sales technical support?
Yes. Our technical support service is available even after purchase for support, maintenance, spare parts and updates.
How are goods packed before shipping?
The light towers are packed with professional systems that guarantee maximum protection during trailer transport. We use protective covers to avoid damage even over long distances.
Can the light towers be customised?
Yes, we offer several customisation options, including painting, advanced control units and sector-specific accessories.
