Versatile

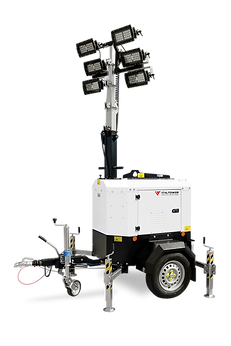

Mantis Pro RT-M is a robust light tower with hydraulic pole and 150-litre tank for prolonged use. Ideal for construction sites and large outdoor events, it guarantees constant performance with minimal downtime. The road trailer makes it easy to transport.
.Lumen
135,000 lm
Alternator
Linz Alumen 3.5kVA
Autonomy
272 hours
Illuminated area
7000 smq
Acoustic emissions
61 dB @7m
Control unit
Comap AMF25
Engine
Yanmar 2TNV70
Engine emissions
Stage V
Tank
150 L
LED Headlights
Six 160W LED Headlights each for a total of 135,000 lumens. High-strength IP67-rated die-cast aluminium body with a service life of 85,000 hours
1
Hydraulic mast
Galvanised pole with hydraulic lifting system can reach a maximum extension of 7 m. Manual valve for lowering pole in case of emergency.
2
Lifting
Certified central lifting eye and rear forklift forks. Tie-down points available on request.
3
Yanmar engine
Yanmar 2TNV70 engine available in all four versions with a consumption of 0.55 l/h, allowing an autonomy of 272 hours thanks to the 150 l tank. (PRO version only)
4
Stabilisers
4 galvanised stabilisers + 1 wheel
5
Do you want more information?
Fill in the fields, We will get back to you as soon as possible!
Key features
Oil extraction pump
Oil extraction pump
The oil extraction pump facilitates and speeds up maintenance operations, allowing quick and clean oil changes. ITALTOWER's light towers are designed to minimise down-time.
AMOSS-KIT
Safety system, mast descent.
The AMOSS-KIT is a safety system that automatically lowers the mast if the truck's parking brake is released. If the parking brake is not applied the operator will not be able to raise the pole (only on MANTIS PRO RT-M).
Dusk till down sensor
Automatic headlight switching
The dusk till down sensor allows the generator to switch on or off automatically, thus activating or deactivating the headlamps according to natural light, improving fuel consumption and user friendliness.
Filters
Keep your light tower healthy with original filters
Italtower offers original filters for scheduled engine maintenance, ensuring full compatibility and constant performance over time.
Containment basin
Basin with drain valve
The basin is equipped with a 110% capacity containment basin; in the event of a leak, it can be emptied via a dedicated drain valve.
Trolley with forks
Reinforced forks for handling
The ST and RT versions feature rear or side forks, designed to facilitate tower handling on site and during trailer transport.
Available in HIGH-end plug-in light towers
Two user-friendly solutions
Auto/manual selector
The mode switch allows a choice between automatic tower start via dusk till down sensor and manual start via operator action
Only present on MANTIS EVO RT-M and MANTIS PRO RT-M
Homologated Road-tow trailer
Homologated trailer
The road trolley is homologated for circulation on European and non-EU roads. Trolleys with homologation comply with DOT (North America) and ROVER (australia)
Only on Mantis PRO RT-M and MANTIS PRO SKID-M
LOW voltage for use even in power failures
Hydraulic pump
The hydraulic pump drives the piston integrated in the pole, allowing the headlamp to be raised and lowered, with safety valve for emergency lowering
.
Only on Mantis EVO RT-M and MANTIS EVO SKID-M
Manual winch for easy manual lifting
Manual winch
Hook for manual lifting of telescopic mast in three different maximum heights: 5.5m / 7m / 8.5m
Visual wheel tightening
Safe towing
Checkpoint
The RT light towers are equipped with checkpoints for checking the tightening of wheel bolts, offering greater safety and stability in use
On MANTIS EVO SKID-M and MANTIS PRO SKID-M only.
Easy handling
Skid with forks
The skid versions feature forks welded to the structure, designed to facilitate handling of the tower on site and during use.
Reduce CO2 emissions
Stage V engines
Emissions
The exhaust pipe, located on the roof of the tower, is designed to attenuate perceived noise at 7 m, improving the acoustic environment for operators
Only on Mantis Evo Skid and MANTIS PRO SKID
Stationary base
The wide base guarantees high stability assisted by the 4 stabilisers. The base can be forklifted from all sides using a pallet truck or forklift
.
Higher than average autonomy in the market
High capacity tank
The 150-litre high capacity tank ensures a high operational range, limiting the need for frequent refuelling and ensuring continuous and efficient tower operation.
Only on Mantis EVO RT-M and Astrid PLUS RT-XL
Reclining drawbar
The rudder is reversible to ensure maximum optimisation during parking and trailer operation.
galvanised and resistant
Stabilisers
The four stabilisers provide maximum safety. They can be folded or retracted for trailer transport
350° swivelling head for maximum flexibility
Rotation
Manual mast rotation provides ample freedom in directing the lights in the desired direction
Eyelet
Certified lifting
Hook for central lifting of light tower, positioned close to manual or hydraulic mast
Only on Mantis EVO RT-M and MANTIS EVO SKID-M
Mast fall arrest system
The locking pin prevents the mast from descending when the tower is in operation.
Models
Engine powered
Light towers
Gen-set powered lighting towers from Italtower, equipped with Kohler or Yanmar engines, offer high performance and low consumption. Resistant to extreme weather conditions and external agents, they are equipped with a control unit that protects engine and electronics. Designed and built in Italy, they guarantee reliability and long life.
Applications
Illuminated area
Lumen
THIS PRODUCT
Mantis PRO RT-M
6x160W LED | 7m
2923823
Illuminated area
121212
Lumen
19.200,00 €
FAQ
How can I request a customised quote?
You can request a quote by filling in the form on our website, or by contacting the sales department directly by email or telephone. We will get back to you quickly with a tailor-made proposal.
What kind of support do you offer?
We provide technical support for installation, maintenance, repair and spare parts. We also assist customers with training and advice on the optimal use of light towers.
Do you provide after-sales technical support?
Yes. Our technical support service is available even after purchase for support, maintenance, spare parts and updates.
How are goods packed before shipping?
The light towers are packed with professional systems that guarantee maximum protection during trailer transport. We use protective covers to avoid damage even over long distances.
Can the light towers be customised?
Yes, we offer several customisation options, including painting, advanced control units and sector-specific accessories.
