Stable

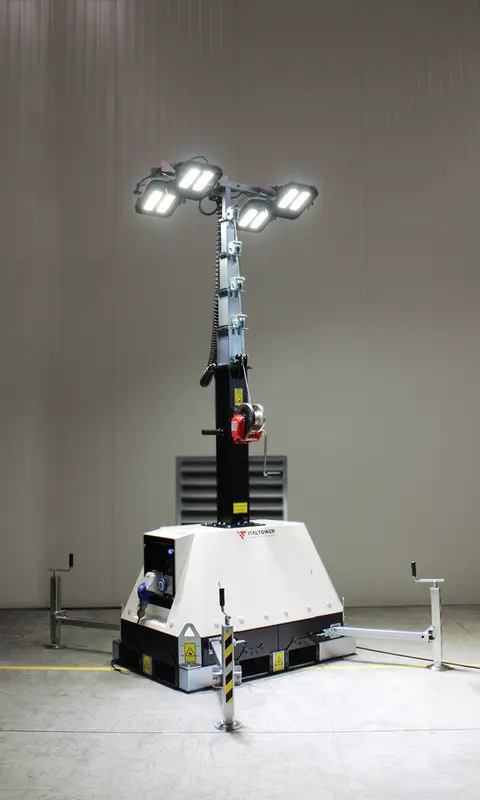

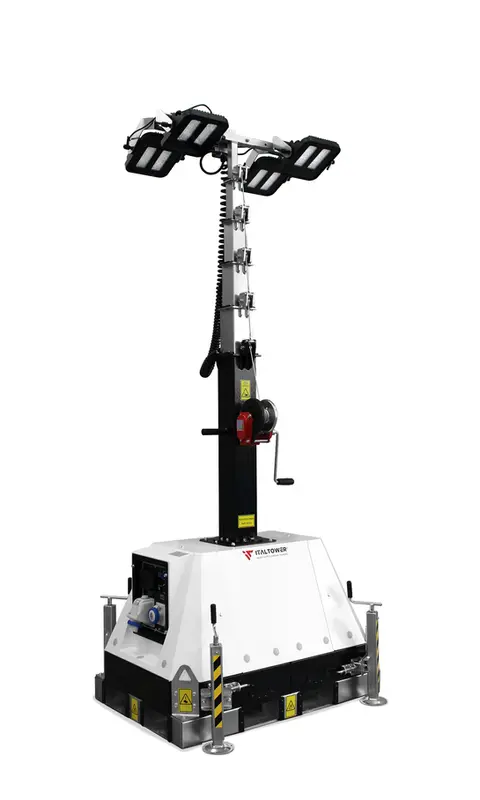

Orus EVO+ SKID-L is a plug-in lighting tower with a compact design, with standard Europallet dimensions of 80x120 cm that make it easy to transport. Stable and functional, it is equipped with 4 adjustable stabilisers for greater safety. Thanks to its technology, it allows up to 6 units to be connected in series to the same power source, ensuring effective illumination of up to 9300 sqm.
Lumen
180.000 lm
Voltage
230 V
Base
Stationary
Illuminated area
9300 sqm
Acoustic emissions
0 db
Starting
Automatic/Manual
Frequency
50 Hz
Engine emissions
No
Consumption 4x320W
1.28 kW

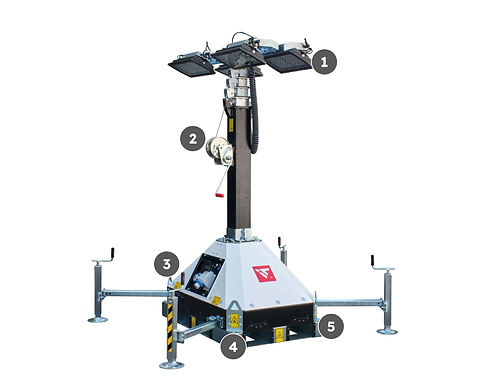

1
LED Headlights
Four 320W LED Headlights each for a total of 180,000 lumens. High-strength IP67-rated die-cast aluminium body with a service life of 85,000 hours
2

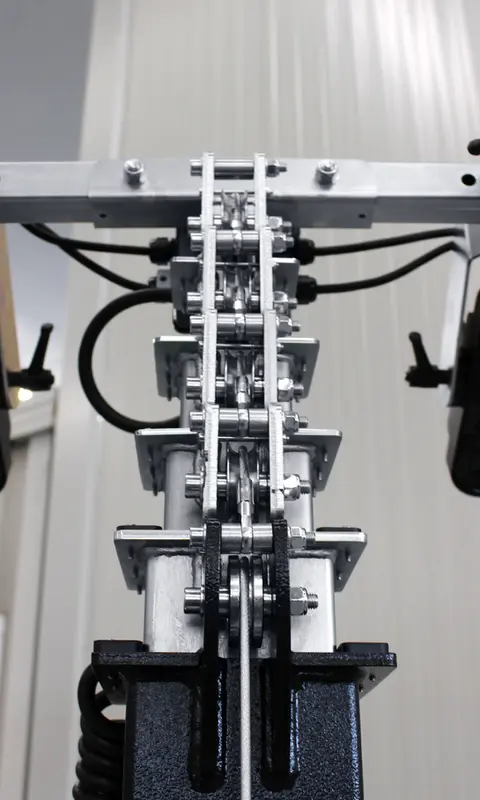

Manual Mast
Galvanised pole with manual lifting system can reach a maximum extension of 9 m
3

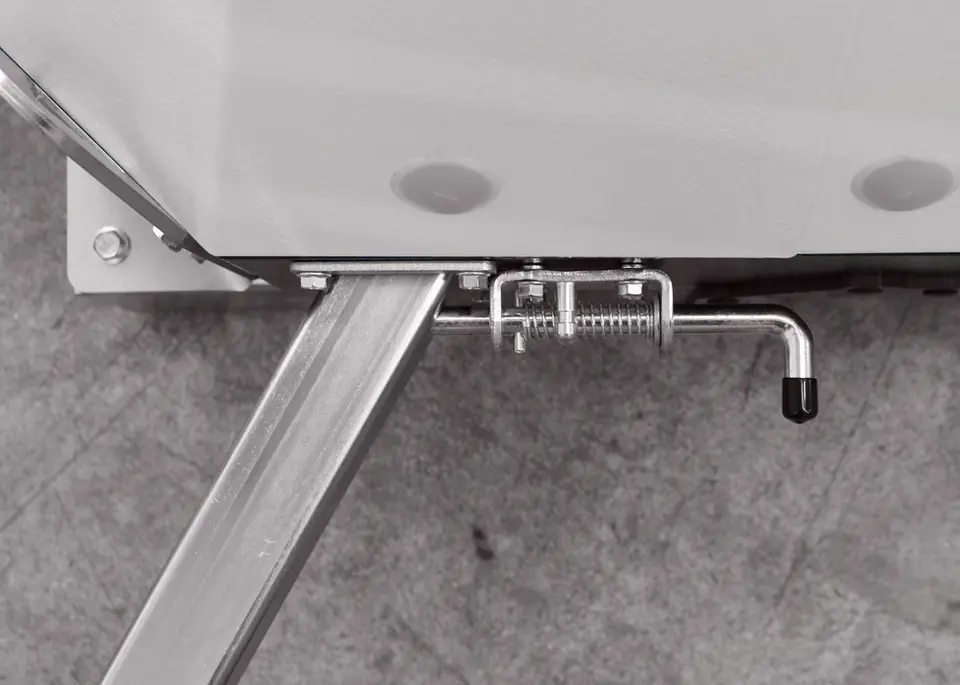

Stabilisers
4 retractable stabilisers on each corner of the base to increase transportability
4
Lifting Brackets
The 4 lifting brackets make it possible to safely trailer the light tower
5
Light Tower Base
2 bifurcations on each side allow the tower to be moved quickly with a forklift truck
Do you want more information?
Fill in the fields, We will get back to you as soon as possible!
Key features
Connectivity and versatility
Connectable in series
The socket and plug in/out frame allows for the connection of up to 6 units in series, all powered by a single source, either the mains or a generator. To ensure maximum compatibility, the tower can be configured with different types of connectors: Industrial (CEE) 230V or 110V, Schuko 230V, USA 110V.

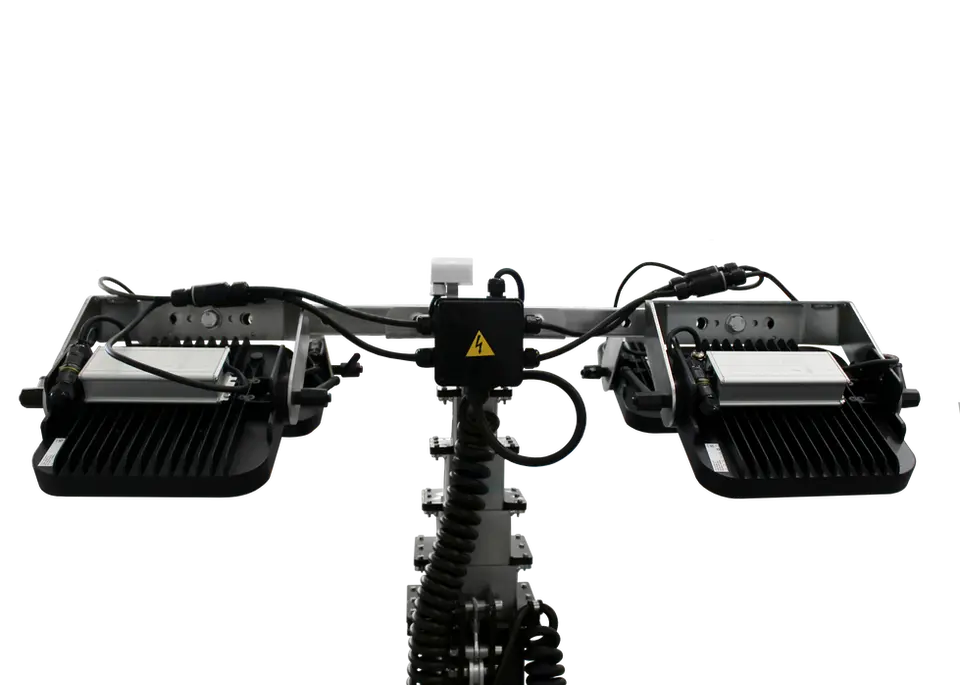

Dusk to dawn sensor
Automatic switch-on
The dusk to dawn sensor maximizes the efficiency of Italtower light towers: it automatically detects changes in natural light, manages the generator's on and off, and activates the headlight accordingly, thus improving fuel consumption and ease of use.

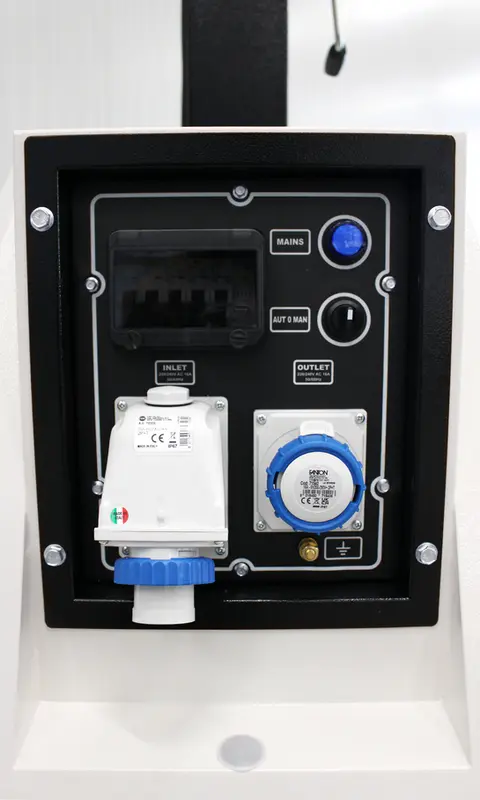

AUTO/MAN selector
Automatic start
AUTO/MAN selector with key that enables the autonomous start-up of the lighting tower with dusk to dawn sensor or manual activation by the operator

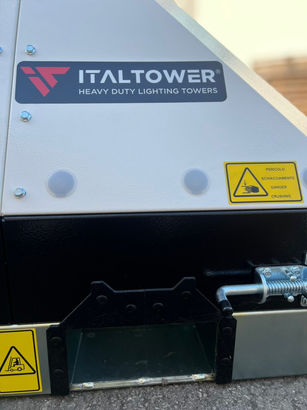

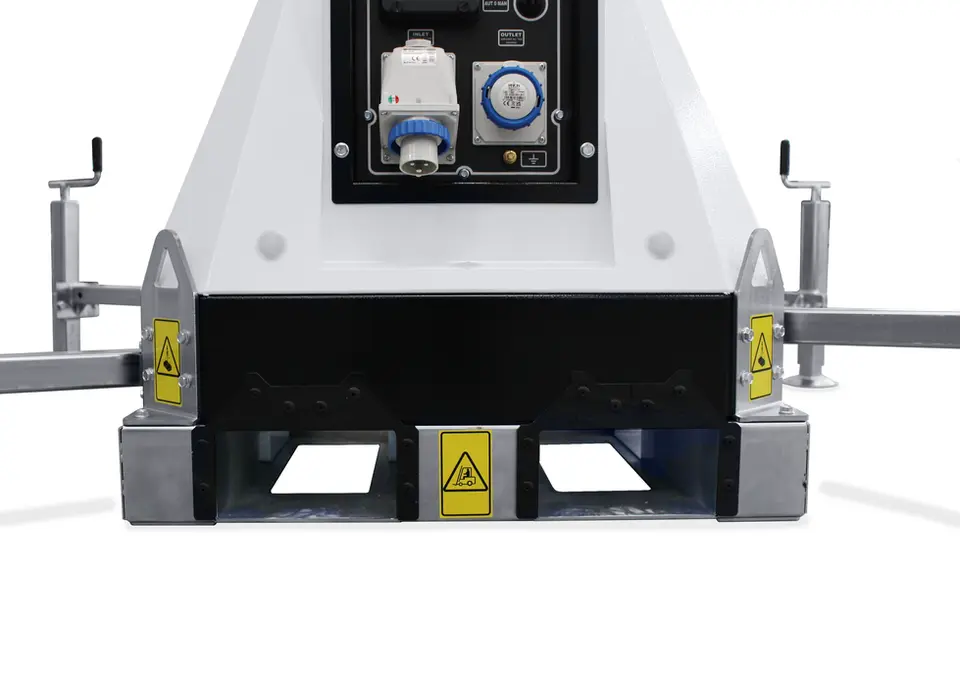

For forklift trucks
Easy to move
Base designed for logistics mobility: forklift pockets on all four sides ensure a secure grip, eliminating the need for complex manoeuvres and speeding up handling.
Lifting brackets
Easy lifting
Prepared for lifting from above via 4 integrated corner brackets that ensure a secure grip and optimal balance in handling.
Headlight tilt
The headlight beam angle can be manually adjusted using the dedicated lever
Mast rotation
Manual mast rotation provides ample freedom in directing the lights in the desired direction.

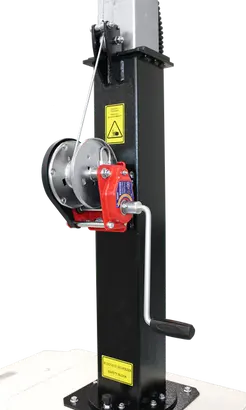

Simple riser
A winch designed to raise the telescopic mast safely to three different heights

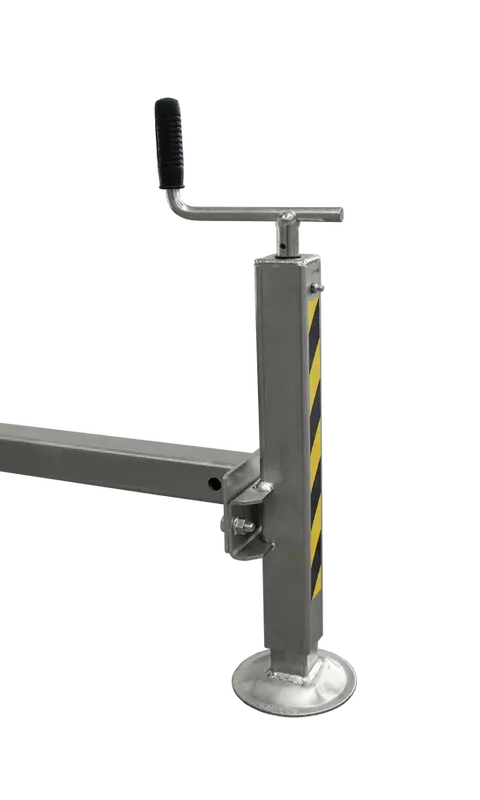

Stability
The four stabilisers ensure secure anchoring and minimal space required for transport
Applications
Illuminated area
Lumen
Mast Height
Mast Lifting
Stationing
Power supply
THIS PRODUCT
Orus EVO+ SKID-L
4x320W LED | 9 m
9300 sqm
Illuminated area
180.000 lm
Lumen
9 m
Mast Height
Manual
Mast Lifting
Stationary
Stationing
Automatic and manual
Power supply
8.000,00€
FAQ
Do you provide after-sales technical support?
Yes. Our technical support service is available even after purchase for support, maintenance, spare parts and updates.
How can I request a customised quote?
You can request a quote by filling in the form on our website, or by contacting the sales department directly by email or telephone. We will get back to you quickly with a tailor-made proposal.
How are goods packed before shipping?
The light towers are packed with professional systems that guarantee maximum protection during trailer transport. We use protective covers to avoid damage even over long distances.
Can the light towers be customised?
Yes, we offer several customisation options, including painting, advanced control units and sector-specific accessories.
What kind of support do you offer?
We provide technical support for installation, maintenance, repair and spare parts. We also assist customers with training and advice on the optimal use of light towers.
