Safety
Shield Hybtid PRO SKID-S is a compact and safe light tower designed for use in emergency situations. Powered by AGM batteries, it comes into operation in the event of sudden power cuts. Thanks to its small dimensions of 110x110 cm, it is easy to trailer and position. The control system, winch and pole are protected inside the structure. The side panels can accommodate accessories such as first aid kits, defibrillators or fire extinguishers. Ideal for events, demonstrations and military settings.
Lumen
80,000 lm
Batteries
4xAGM - 400Ah 24vdc
Autonomy
720 hours
Illuminated area
4400 smq
Acoustic emissions
61 dB @7m
Charging in
6 hours
Engine
Yanmar L70V
Voltage
24V
Tank
240 L
LED Headlights
Six LED Headlights of 100W each for a total of 80,000 lumens.IP65-rated high-resistance painted steel body with a lifespan of 50,000 hours
1
Hydraulic mast
Galvanised pole with hydraulic lifting system can reach a maximum extension of 7 m. Manual valve for lowering pole in case of emergency.
2
Technical compartment
4 AGM 24V 200 aH batteries - 12 hours of autonomy at 100% power
3
Bailers
2 forks on each side allow the tower to be moved quickly by forklift truck
4
Do you want more information?
Fill in the fields, We will get back to you as soon as possible!
Key features
Oil extraction pump
Oil extraction pump
The oil extraction pump facilitates and speeds up maintenance operations, allowing quick and clean oil changes. ITALTOWER's light towers are designed to minimise down-time.
Battery disconnect
Battery disconnect
The battery disconnector allows the electrical system to be safely isolated, preventing current leakage. In the event of prolonged stalling in storage, it is recommended to set it to 'OFF' to preserve the integrity of the electrical system.
Filters
Keep your light tower healthy with original filters
Italtower offers original filters for scheduled engine maintenance, ensuring full compatibility and constant performance over time.
Containment basin
Basin with drain valve
The basin is equipped with a 110% capacity containment basin; in the event of a leak, it can be emptied via a dedicated drain valve.
On MANTIS EVO SKID-M and MANTIS PRO SKID-M only.
Easy handling
Skid with forks
The skid versions feature forks welded to the structure, designed to facilitate handling of the tower on site and during use.
Reduce CO2 emissions
Stage V engines
Emissions
The exhaust pipe, located on the roof of the tower, is designed to attenuate perceived noise at 7 m, improving the acoustic environment for operators
Only on Mantis PRO RT-M and MANTIS PRO SKID-M
LOW voltage for use even in power failures
Hydraulic pump
The hydraulic pump drives the piston integrated in the pole, allowing the headlamp to be raised and lowered, with safety valve for emergency lowering
.
Only on Mantis Evo Skid and MANTIS PRO SKID

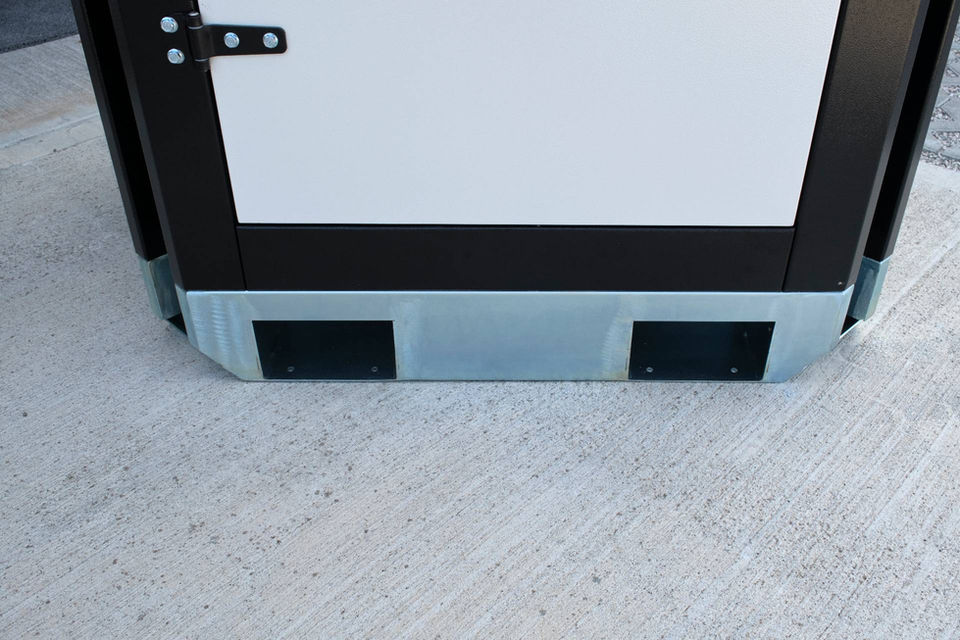

Stationary base
The wide base guarantees high stability assisted by the 4 stabilisers. The base can be forklifted from all sides using a pallet truck or forklift
.
Higher than average autonomy in the market
High capacity tank
The 150-litre high capacity tank ensures a high operational range, limiting the need for frequent refuelling and ensuring continuous and efficient tower operation.
No external screws for your safety
Anti-vandalism carpentry
Thanks to the screwless carpentry, it allows for greater safety of the tower in place. As it reduces the possibility of tampering by unauthorised operators or vandals.
galvanised and resistant
Stabilisers
The four stabilisers provide maximum safety. They can be folded or retracted for trailer transport
350° swivelling head for maximum flexibility
Rotation
Manual mast rotation provides ample freedom in directing the lights in the desired direction
Retractable bracket
Shield lifting bracket
Fitted with 1 lifting bracket positioned at the top of the tower
niche for accessories
First aid box
Customised compartments to accommodate first aid kit, fire extinguisher etc..4 Monocrystalline silicon solar panels of 305W each.
Applications
Illuminated area
Lumen
THIS PRODUCT
Illuminated area
Lumen
28.500,00 €
